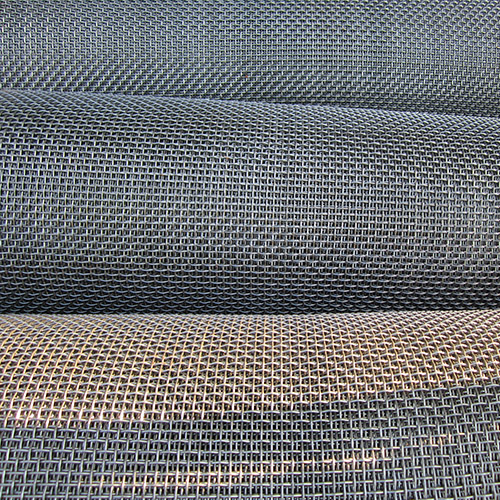

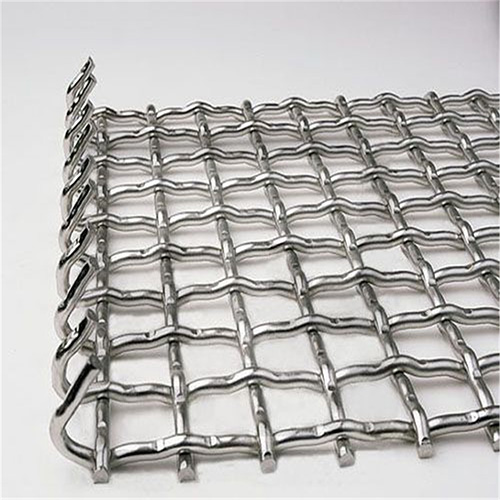

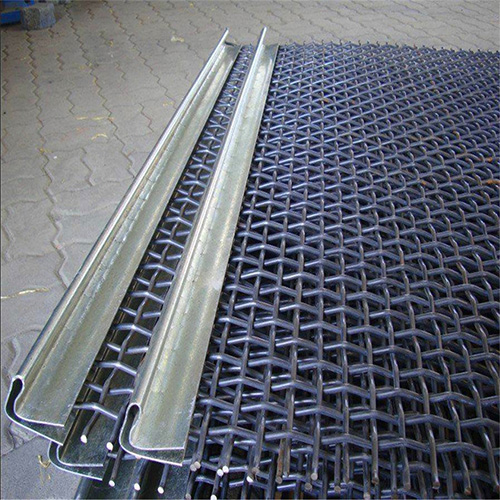

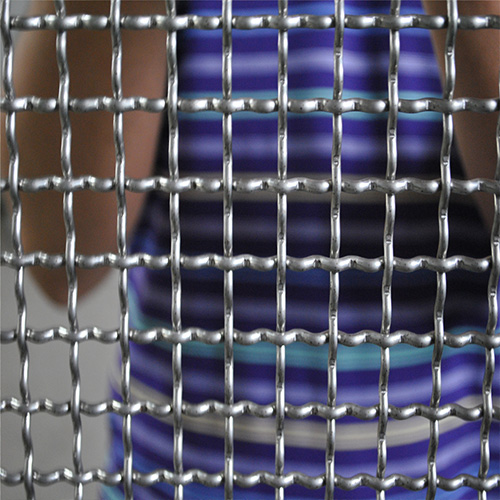

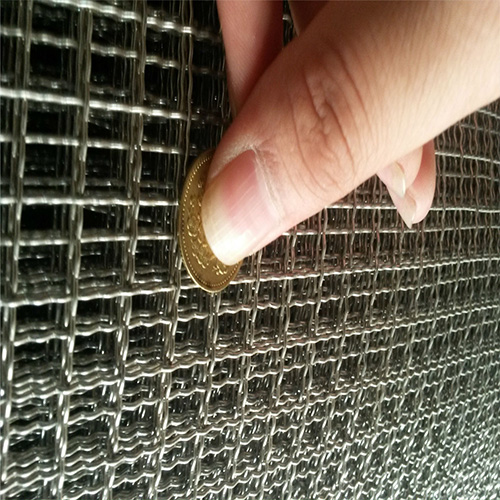

Stainless Steel Wire Mesh
（+86）-0318-7565086
Email: zoe@wiremeshok.com
 |
Wire Mesh Material: Black iron wire,white wire, lead wire, stainless steel wire, etc.
Mesh:21mesh/18mesh/20mesh/16mesh/14mesh/12mesh
Weaving and characteristics:
Crimped before woven, with all types.Crimped stainless steel wire mesh offers a
stable structure and good strength.
Application: Crimped iron wire mesh is mainly used in coal and mine, building, etc.
| Wire gauge SWG | Wire dia.(mm) | Mesh | Hole size(mm) | Weight: kg/m2 |
| 14 | 2 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.5 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2 | 5.08 | 0.3 | 12 |
| 14 | 2 | 2.1 | 1 | 2.5 |
| 14 | 2 | 3.6 | 1.5 | 1.9 |
| Note:width of 0.5--6.0m available | ||||
Special specifications can be produced by the customer's requirements.
