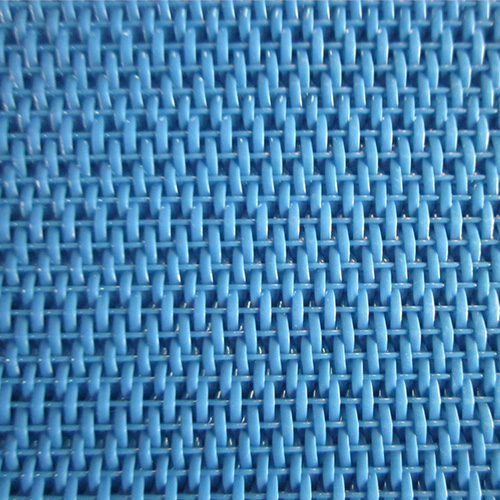

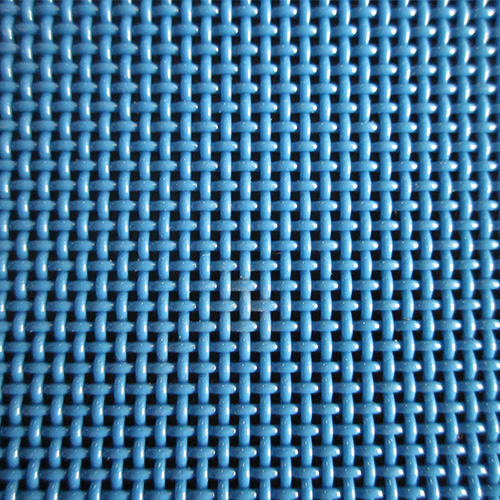

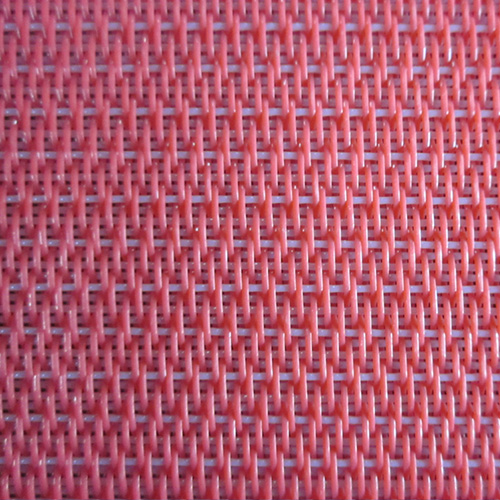

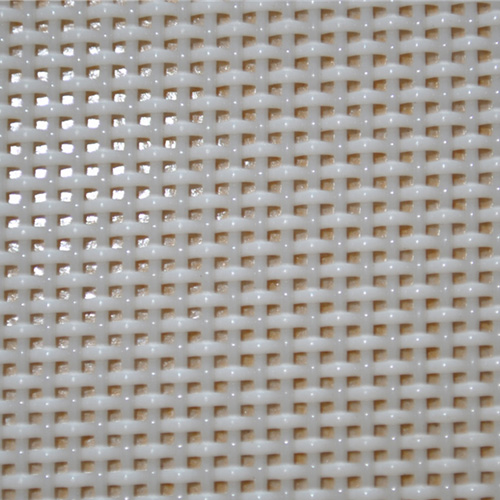

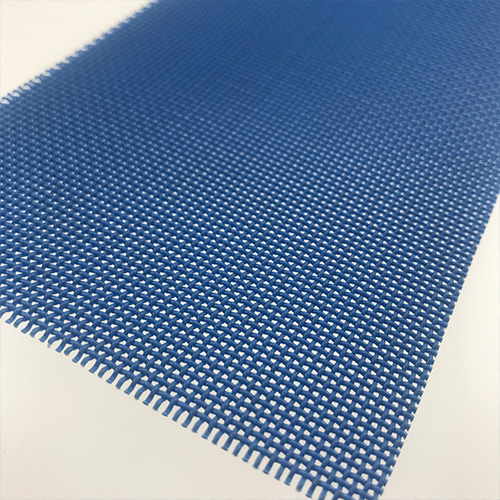

Plain Woven Polyester Mesh Series
Two-shed and three-shed plain woven mesh are mainly used in making paper pulp, packing paper, fiber paper and other special wire mesh products.
Series | Fabric Model | Thread Diameter mm | Density (pieces/cm) | Strength (N/cm) | Weight kg/m2 | Thick- ness/ mm | Air Perme-ation 3/m2h | ||||
Warp | Weft | Warp | Weft | Mesh Surface | Inserting Place | Spiral Conne-cting Ring | |||||
Two-Shed Plain Woven Mesh | 07603 | 0.70 | 0.70 | 8 | 7 | 1600 | 900 | 600 | 0.77 | 1.3 | 11000 |
09451 | 0.5 | 0.5 | 9 | 9 | 1600 | 850 | 600 | 0.45 | 0.88 | 16000 | |
12502 | 0.50 | 0.50 | 13.5 | 8.5 | 1800 | 900 | 600 | 0.63 | 0.95 | 6500 | |
Three-Shed lain Woven Mesh | 108603 | 0.50 | 0.60 | 10 | 9 | 1600 | 900 | 650 | 0.59 | 1.15 | 14000 |
106702 | 0.70 | 0.80 | 8 | 8 | 1600 | 900 | 650 | 0.80 | 1.35 | 10000 | |
106353 | 0.35 | 0.35 | 17 | 15 | 1200 | 750 | 600 | 0.31 | 0.60 | 12100 | |
120403 | 0.30 | 0.40 | 22 | 14.5 | 1200 | 750 | 600 | 0.35 | 0.70 | 13500 |
Special specifications can be produced by the customer's requirements.
