Material: SUS 304,304 L 316,316 L
Weaving: Plain woven,twill woven,Dutch woven, reverse woven,etc.
Mesh:3-635 .
Diameter:0.025-20(mm).
Uses:For mining, petroleum, chemical industry, food, medicine, machinery manufacturing, and other industries.
Application:It is used in screening and seperation in mine,coal,grain,medicine,ceranic,glass,food,scientific research and other fields.
Resen can offer wide range of stainless steel sieving cloth according to the configuration of wire thickness in relation to aperature size, as well as type of weaves. Resen can vary in texture from being as fine, soft and flexible as silk to being as rigid as steel plate.

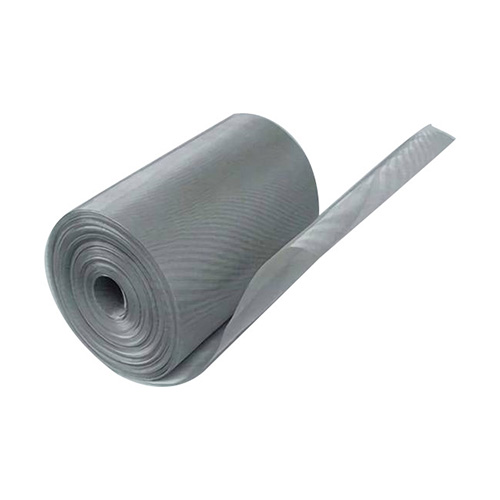

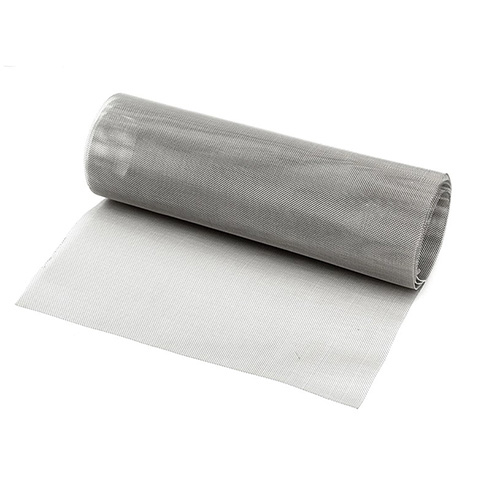

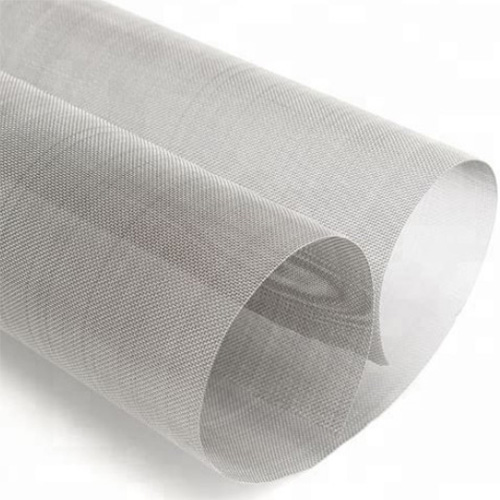

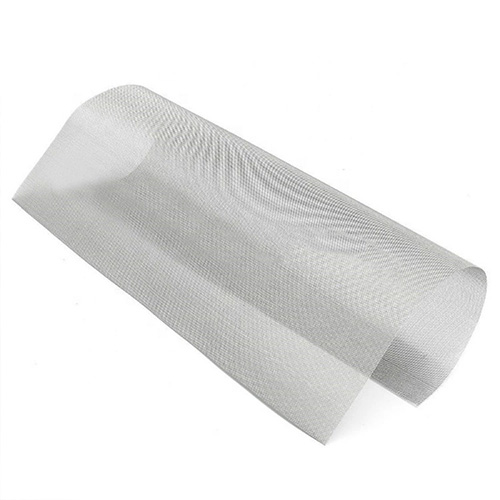

Stainless steel wire cloth is available in rolls or cutted into wire mesh discs and also as fabricated filter assembly. We are capable of processing the woven wire cloth into different shapes and sizes according to your request or drawings.
Materials for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 304,Type 304 L, Type 316 and Type 316 L.
Weaving Pattern:Plain weave, twilled weave, dutch weave, etc.
Characteristic: Acid-resisting, alkali-resisting, heat-resisting, corrosion-resisting, etc.
Uses: To sieve and filter in the acid and alkali environment. Stainless steel wire mesh is used as sieve mesh in petroleum industry; as filter-mesh in chemical industry; also used in galvanized industry.
Resen wire cloth offers custom fabrications of wire mesh for all types of applications. We have provided industry with wire mesh fabricated items used for Filtration and Sizing, Security and Safety, to Material Handling and Production Applications for many years.
We offer services such as cutting, shearing, bending, forming, rolling, welding, stamping and slitting to produce your specific requirements. We also manufacture screens for many OEM’s.
Our products include Vibrating Screens, Sifting and Sizing Screens, both Open and Closed Cylinders, Large and Small Diameter Discs, Baskets, Trays, Liners, and Separator Rings to name some.
We offer various hook styles for our screens which are designed to fit your specific equipment.
Resen Wire Cloth Co., Ltd can produce all kinds of stainless steel sieving cloth as customers' requirements.
Mesh | Wire dia | aperture | Opening
area(%) | Weight(lb)/
100sq.ft. |
inch | mm | inch | mm |
100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
100x100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
100x100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
120x120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 |
150x150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
160x160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
180x180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
200x200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
250x250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 |
270x270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
300x300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
325x325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 |
400x400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
500x500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
635x635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
Stainless Steel Type 304/ 304L Filter Cloth
It is an austenitic, non-magnetic and thermally nonhardenable economical stainless steel. It resists most oxidizing acid and withstands all ordinary rusting. It is immune to foodstuffs, sterilizing most organic chemicals and dyestuffs and a wide variety of organic chamicals; but it resists poorly halogen acids.
Stainless Steel Type 316/316L Filter Cloth
It is similiar to Type 304 but distiguished primarily by the addition of molybdenum which significantly increases its corrosion resistance. Type 316 can withstand corrosive attack by sodium and calcium brines, hypochlorite solutions, phosphoric, sulfurous, and acetic acids, and the hostile environment of the body when used for implant.
Special specifications can be produced by the customer's requirements.
<template class="visibility">
Material: SUS 304,304 L 316,316 L
Weaving: Plain woven,twill woven,Dutch woven, reverse woven,etc.
Mesh:3-635 .
Diameter:0.025-20(mm).
Uses:For mining, petroleum, chemical industry, food, medicine, machinery manufacturing, and other industries.
Application:It is used in screening and seperation in mine,coal,grain,medicine,ceranic,glass,food,scientific research and other fields.
Resen can offer wide range of stainless steel sieving cloth according to the configuration of wire thickness in relation to aperature size, as well as type of weaves. Resen can vary in texture from being as fine, soft and flexible as silk to being as rigid as steel plate.
Stainless steel wire cloth is available in rolls or cutted into wire mesh discs and also as fabricated filter assembly. We are capable of processing the woven wire cloth into different shapes and sizes according to your request or drawings.
Materials for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 304,Type 304 L, Type 316 and Type 316 L.
Weaving Pattern:Plain weave, twilled weave, dutch weave, etc.
Characteristic: Acid-resisting, alkali-resisting, heat-resisting, corrosion-resisting, etc.
Uses: To sieve and filter in the acid and alkali environment. Stainless steel wire mesh is used as sieve mesh in petroleum industry; as filter-mesh in chemical industry; also used in galvanized industry.
Resen wire cloth offers custom fabrications of wire mesh for all types of applications. We have provided industry with wire mesh fabricated items used for Filtration and Sizing, Security and Safety, to Material Handling and Production Applications for many years.
We offer services such as cutting, shearing, bending, forming, rolling, welding, stamping and slitting to produce your specific requirements. We also manufacture screens for many OEM’s.
Our products include Vibrating Screens, Sifting and Sizing Screens, both Open and Closed Cylinders, Large and Small Diameter Discs, Baskets, Trays, Liners, and Separator Rings to name some.
We offer various hook styles for our screens which are designed to fit your specific equipment.
Resen Wire Cloth Co., Ltd can produce all kinds of stainless steel sieving cloth as customers' requirements.
Mesh | Wire dia | aperture | Opening
area(%) | Weight(lb)/
100sq.ft. |
inch | mm | inch | mm |
100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
100x100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
100x100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
120x120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 |
150x150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
160x160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 |
180x180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 |
200x200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
250x250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 |
270x270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 |
300x300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
325x325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 |
400x400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
500x500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
635x635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
Stainless Steel Type 304/ 304L Filter Cloth
It is an austenitic, non-magnetic and thermally nonhardenable economical stainless steel. It resists most oxidizing acid and withstands all ordinary rusting. It is immune to foodstuffs, sterilizing most organic chemicals and dyestuffs and a wide variety of organic chamicals; but it resists poorly halogen acids.
Stainless Steel Type 316/316L Filter Cloth
It is similiar to Type 304 but distiguished primarily by the addition of molybdenum which significantly increases its corrosion resistance. Type 316 can withstand corrosive attack by sodium and calcium brines, hypochlorite solutions, phosphoric, sulfurous, and acetic acids, and the hostile environment of the body when used for implant.
Special specifications can be produced by the customer's requirements.
</template>
<template class="visibility">
Stainless Steel Rim Sieve：
| Stainless Steel Rim Sieve This sieve / flour sifter features stainless steel mesh and a sturdy stainless steel rim. It measures 10 in diameter x 3 deep. |
| Stainless Steel Rim Sieve This sieve / flour sifter features stainless steel mesh and a sturdy stainless steel rim. It measures 12 in diameter x 3 deep. |
| Stainless Steel Sieve With Rim/Mesh - 16" Dia. x 3" Deep Sieve, 16' dia. x 3' depth, stainless steel rim w/mesh, Sieve by Resen. Resen is a manufacturer and worldwide importer of kitchenware and tableware. |
| Resen Stainless Steel Rim w/ Mesh Sieve - 10in Dia. x 3in Deep Stainless Steel Rim w/ Mesh Sieve - 10in Dia. x 3in Deep No user ratings |
| Resen Stainless Steel Sieve With Rim/Mesh - 14" Dia. x 3" Deep Sieve, 14' dia. x 3' depth, stainless steel rim w/mesh, Sieve by Resen. Resen is a manufacturer and worldwide importer of kitchenware and tableware. |
| Stainless Steel Rim Sieve This sieve features stainless steel mesh and has a sturdy stainless steel rim. Itmeasures 16 in diameter x 3 deep. |
| Resen Stainless Round Sieve With No. 20 Mesh - 12" Dia. X 3"H Sieve (Round, 12 Dia, S/S). No user ratings |
| Stainless Steel Rim Sieve This sieve features stainless steel mesh and a sturdy stainless steel rim. It measures 14 in diameter x 3 deep. |
| Resen S9916 16" Stainless Steel Rim Sieve This stainless steel sieve is made from mesh wire that has 16 squares per inch. It has two cross-bar wire reinforcers. |
Stainless Steel Test sieves：
Sieve Cleaning Instructions
1.Use of an Ultrasonic cleaner of 150 watts or less. Fill cleaner with water at a temperature of between 70 and 90 degrees Fahrenheit and place sieves in edge wise for 30 seconds to one minute - remove and let Air-Dry.
2.An alternative method is to use Freon T.F. Using a container, 2000 mil beaker or equivalent, and add Freon T.F. to about 2" depth. Place beaker in ultrasonic cleaner, insert precision sieve edgewise, and rotate the sieve so all parts are exposed to the cleaning action - about 30 seconds to one minute. Remove the sieve and let Air-Dry. The Freon T.F. can the be filtered and stored in a closed container for future use. The sieves will return to their original weight in a few minutes for contained testing.
3.It is safe to use the following classes of solvents - AT ROOM TEMPERATURE
·Methyl ethyl ketone
·Chlorinated solvents
·Freons
·Petroleum distillate
·Alcohols
</template>

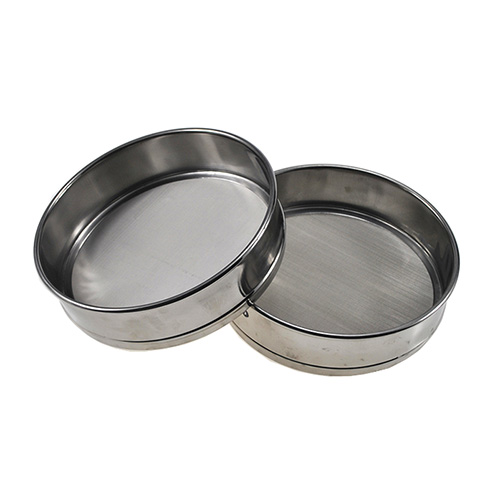

Test sieves are woven wire or perforated metal pans that are used for sifting and filtration. Test sieves are accurately constructed by placing wire cloth between two suppressed die formed frames. Stainless steel or brass is generally used in the construction of both the frame and woven wire mesh that performs the straining. These devices are very accurate and widely used in all types of laboratory particle analysis.
Test sieves are available in a variety of standard diameters (3, 5, 6, 8, 10, 12, and 18 inches, and 200, 300, or 400 mm). Specialized or proprietary sizes, either larger or smaller, are also available. Test sieves are also available in a variety of heights, either full height (typically full height is 2 5/8"), half height (typically 1 5/8”), or a variety of intermediate sizes
·One piece construction and fabric-transition has no grooves to prevent cross contamination (no solder, no residues, etc.)
·A high degree of corrosion resistance and ease of cleaning due to high-alloy stainless steel (specification: 316)
·15% lighter than traditional sieves while at the same time increasing the free sieve area
·Previously unattained product quality due to fully automatic production and extensive optical inspection with optimum design
·Innovative resistance welded technology guarantees permanently tight sieve fabric
·Maximum stability and optimum sealing when used in sieve stacks
·Clear and precise labeling of the sieves with full traceability based on individualized laser engraving
Sieves Stainless Steel Mesh 8" Diameter Item #S8
Sieves 8 inch diameter stainless steel mesh, brass or stainless rim.
|
Sieves Stainless Steel Mesh 12" Diameter Item #S12
Sieves 12 inch diameter stainless steel mesh, brass or stainless rim. |
U.S Standard Stainless Steel Seives 3" Diameter Item #L3
meet current sieve specifications of ASTM and ISO
Available in stainless steel and brass mesh
clear acrylic frame dimensions:
3-1/2" O.D, 3" I.D with an overall height of 5/8"
For use with Sonic Sifter Separator
|
Precision Seives 3" Diameter Item #L3-M
meet current sieve specifications of ASTM E 161 and ISO
Electroformed nickel mesh
clear acrylic frame dimensions:
3-1/2" O.D, 3" I.D with an overall height of 1-1/4"
For use with Sonic Sifter Separator
|
Product Specifications：
| Micro-Mesh Standard Sieves |
| Rim Diameter | Rim Height/SS | Mesh Size | Mesh Tolerance | Standards |
| 3" | 1" or 3" | 3um - 2000um
Square, Round, Slotted
& Custom | +/- 2um | ASTM E-161
ISO 3310-3 |
| 6" | 1" or 2" | +/- 2um |
| 8" | 1" or 2" | +/- 2um |
| 12" | 2" | +/- 2um |
| 75mm | 25mm | +/- 2um |
| 200mm | 50mm | +/- 2um |
| Micro-Mesh Ultra Sieves |
| Rim Diameter | Rim Height/SS | Mesh Size | Mesh Tolerance | Standards |
| 3" | 1" or 3" | 2um - 500um
Square, Round, Slotted
& Custom | +/- 1.0um | ASTM E-161
ISO 3310-1 |
| 8" | 1" or 2" | +/- 1.5um |
| 75mm | 25mm | +/- 1.0um |
| 12" | 50mm | +/- 1.5um |
Accessories:
As sieves are often used for sequential particle sizing, Micro-Mesh sieves are available with matching pans, covers, and nesting pans for complete classification systems. These accessories are made from stainless steel as the sieve frames. Pans and covers are offered as a set while nesting pans are offered separately.
Certifications:
Micro-Mesh sieves comply with ISO specifications 3310-3 and 3310-1 and ASTM specifications E-161-00. Each sieve is measured at 108 random locations using automated optical measuring equipment and comes with a complete detailed analysis and certificate of compliance.
